Welcome to our guide on the Refrigerant Temperature Pressure chart. This tool is important for refrigeration technicians and professionals because it helps you determine the condensing and evaporating temperatures needed for system management. Whether you are experienced or just starting, this article will help you understand and use the pressure-temperature relationships for different refrigerants like R22,R32, R404A,r600a,r134a, and R410 refrigerants

Condensation temperature and condensation pressure

Condensation temperature

The condensation temperature refers to the saturation temperature at which the refrigerant vapor condenses within the condenser under a specific pressure. It is important to note that the condensation temperature is not equivalent to the temperature of the cooling medium, and a temperature difference exists between the two due to heat transfer.

Condensation pressure

Condensation pressure is defined as the pressure at which the refrigerant transitions from a gaseous state to a liquid state within the condenser. Since the internal pressure of the condenser in a refrigeration system is difficult to measure directly, it is often approximated that the discharge pressure closely resembles the condensation pressure.

Furthermore, the pressure drop of the refrigerant in the discharge line and within the condenser is typically minimal, leading to this approximation being widely accepted during both design adjustments and maintenance operations.

Ultimate Guide To Refrigerants >>

Estimation of condensation temperature

Below is an experienced valuation provided for reference:

Condensation temperature = Ambient temperature / Water temperature + (10 to 20°C).

Example

In the case of a chiller, if the outlet temperature of the cooling tower is known to be 25°C, what would be the approximate condensing temperature of the refrigeration system?

The evaporating temperature can be estimated as follows:

Evaporating Temperature = 25 + (10~20) = 40°C.

Referring to the temperature-pressure chart, it is easy to determine that the corresponding condensing pressure is approximately 1.55 MPa (absolute pressure, R22 refrigerant).

With this condensing pressure, we can compare it with the high-pressure gauge of the refrigeration system to assess whether the system is operating normally. This comparison helps to identify whether the high pressure is unusually high or low, which is vital for maintenance and debugging.

Refrigerant pressure temperature chart

The following are detailed charts for refrigerants R22,R32, R404A,r600a,r134a, and R410, which provide essential temperature and pressure data for effective management of refrigeration systems. Understanding and utilizing the refrigerant temperature-pressure charts is critical for the efficient operation and maintenance of these systems.

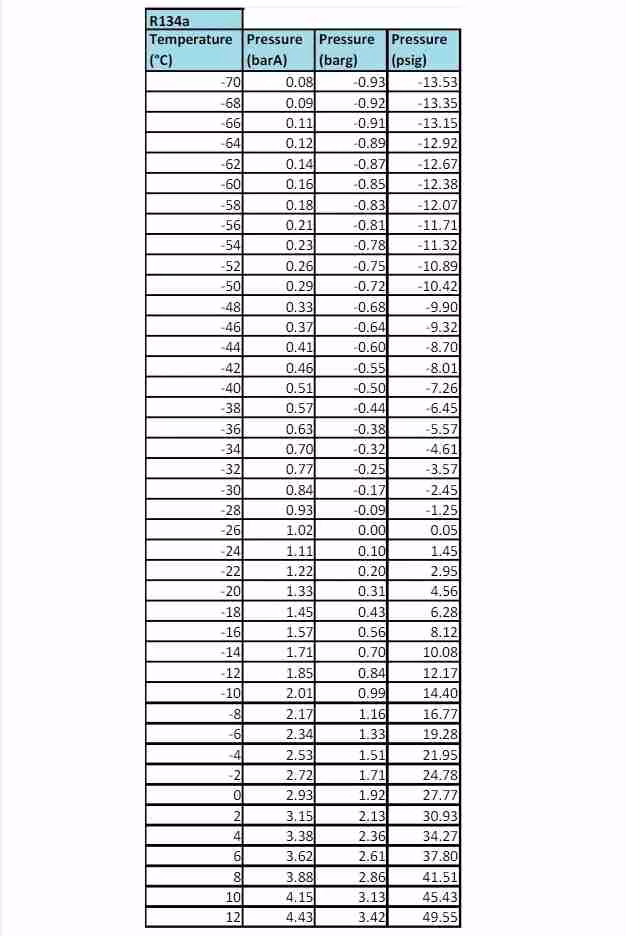

r22 pt chart

r410a pt chart

r32 pt chart

r600a pt chart

r134a pt chart

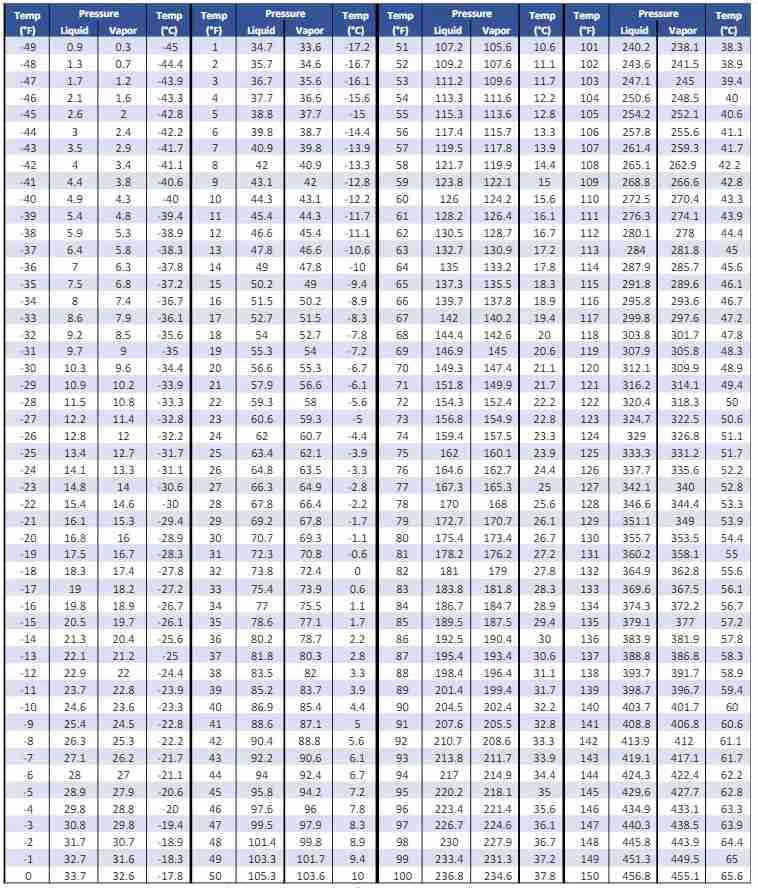

r404a pt chart

conclusion

By mastering how to estimate the condensing and evaporation temperatures based on ambient conditions, you can ensure that the systems operate optimally, thereby reducing downtime and maintenance costs.

With the update of environmental protection policies, 2025 many high GWP refrigerants will also face a ban on the use of refrigerants, about 2025 countries’ refrigerant requirements and the latest refrigerants, welcome to read this article to learn more!《2025 R454B-Refrigerant-Solution-For-Cold-Plunge-Chiller》

This guide not only aids in quick diagnostics but also helps in preventing common issues, such as refrigerant undercharging. Always refer to the detailed charts provided for accurate data and continually consult updated resources to keep your knowledge current.

By embracing these tools, you can excel in the HVAC field, ensuring reliability and efficiency in your daily operations.Welcome to learn more about refrigeration solutions at Syochi.
